Description

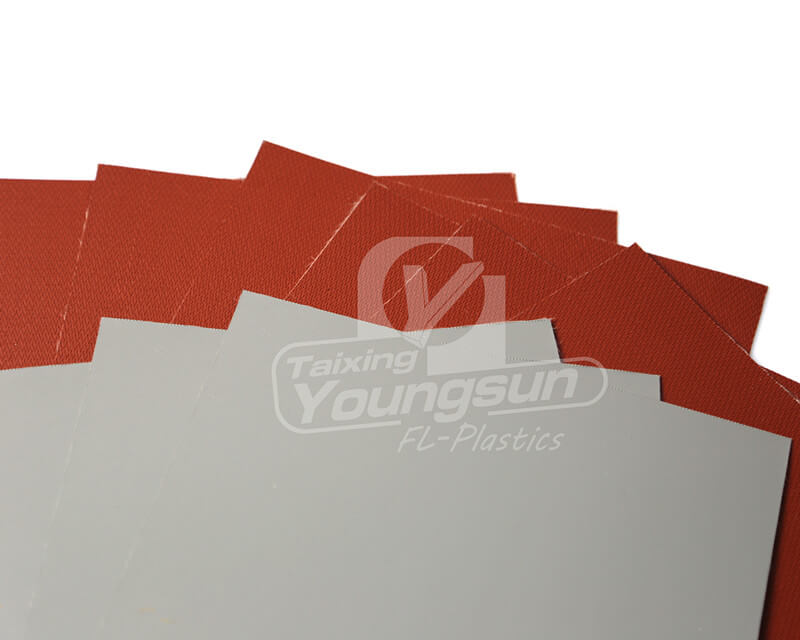

34 oz Silicone coated fiberglass cloth, advanced coating fabric for welding, insulation, aerospace, automotive and petrochemical
- Silicone coated fiberglass cloth, is based on fiberglass fabric, and impregnated with specially formulated silicone rubber. This silicone coating extended lifetime, offer great oil and water resistance, low smoke and flame retardation.
- Fiberglass fabric can work continuously under 1200°F, but silicone coating is rated 500°F on a continuous basis.
- 34 oz silicone coating fabric is designed specifically for high temperature removable pads, this product meets military spec MIL-I-224244.
- And this fabric can be fabricated, die-cut and easy to sewn.
Properties of 34 oz Silicone coated fiberglass cloth
Outstanding temperature resistance (continuous working from -70°C to +260°C)
Durability in severe environments
High electrical insulating power, strong resistance to electric arc
Outstanding abrasion resistant
Excellent dimensional stability, strong tensile strength and tear strength
Resistance to UV
Resistance to HF and RF
High chemical resistant
Resistance to microwaves
By using a specially formulated wet or dry silicone rubber, and specialized weaved satin fiberglass fabric, ESONE silicone coated fabric and textile can not only offer superior heat protection, but also has exceptional durability and high resistance to abrasion and chemicals.
★ Flexible for ease of use in pad fabrication
★ Available in a variety of thicknesses and colors
Applications of 34 oz Silicone coated fiberglass cloth
- Industrial applications of ESONE silicone/PTFE coating fabrics and textiles, including thermal insulation jackets, welding curtain, expansion joint, flame resistant curtains and so on.
- Most of our standard Silicone coated fiberglass cloth is used in industries such as welding, insulation, aerospace, automotive and petrochemical. And our engineer will adjust the formula, or using special fabric like Kevlar®, Nomex®, Nylon, Carbon, aramid blends, in order to meet the request of customer in different industries.
Removable Insulation Jacket
Welding curtain
It is the perfect solution for industry like following：
★ Removable insulation blanket
★ Welding curtains
★ Expansion joints
★ fire protection curtains
★ anti-corrosion sector
★ Equipment covers
★ Safety clothing
★ Shrink tunnels
★ Foam manufacturing
Specifications of 34 oz Silicone coated fiberglass cloth
| Product | Product Category | Coating |
|---|---|---|
| SILICONE RUBBER COATED GLASS FABRIC | SILICONE BOTH SIDE | SILICONE RUBBER |
| 34 oz Silicone Impregnated Fiberglass Fabric YS5075 | ||
|---|---|---|
| Properties | Metric | Imperial |
| Basic Fabric | Satin weaved fiberglass | Satin weaved fiberglass |
| Coating | Both side | Both side |
| Standard width Please ask for other widths | 1500 mm | 60 inches |
| Coated Weight | 1156 g/m² | 34 oz/yd² |
| Thickness | 0.95 mm | 0.037 inches |
| Tensile strength | Warp 3400 N/5cm | 390 lbs/inches |
| Fill 3240 N/5cm | 370 lbs/inches | |
| Mullen Burst | 525 N/cm² | 750 psi |
| Flame Resistant | Char Length 2.54 cm max | Char Length 1 inch max |
| Afterglow 1 second max | Afterglow 1 second max | |
| Flame Out 1 second max | Flame Out 1 second max | |
| Temperature resistance | -54°C to +260°C | -67°F to +500°F |
| Color | Gray/White/Yellow/Black/Red/Silver | Gray/White/Yellow/Black/Red/Silver |
Click here to download the TDS of YS5095-34oz-ESONE
Click here to access 17 oz Silicone coated Glass Cloth, 17.5 oz silicone coated fabrics, 16.5 oz PTFE coated fabric, 18 oz PTFE fiberglass fabric.
Contact us for more information and get samples！
