Description

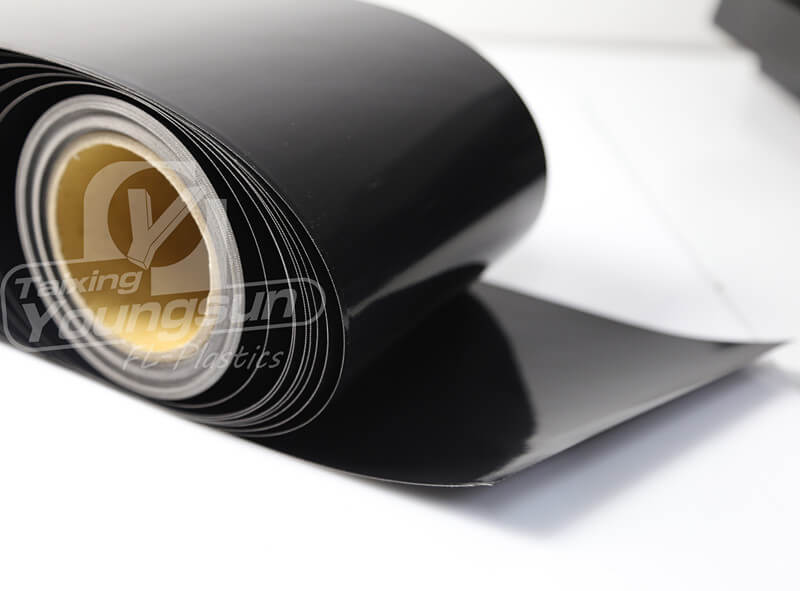

Anti static Teflon coated fiberglass YS9008BJ, eliminates static electricity during operation
- Anti static Teflon coated fiberglass is specially formulated by adding carbon for conductive and Anti static property. Anti static PTFE fabric series combined with the easy release property, by coating high quality PTFE on the basic fiberglass.
- The OHMS(surface resistant) per square meter of Anti static PTFE coated fabrics can be 10^7 to 10^5, which will show excellent conductive and non stick property.
- YS9008BJ is 0.08mm thick, black color, standard width is 1m or 1.25m(1.5m can be offered, but price is different).
Properties of PTFE coating fiberglass fabric YS9025BJ
Continuous working from -70°C to +260°C
High chemical resistant
Anti static (conductive)
Reusable and has long lifetime
Abrasion, Resistance to microwaves, UVs and IRs
Easy to release, super Non stick，Low friction and very smooth
Strong tensile strength and dimensional stability
Application of PTFE Glass Fiber Cloth YS9020A-1
- Anti static Teflon coated fiberglass is widely used in conveyor belts, release sheets, wire and cable production where static can be made.
- Applications such as Automotive, Electronics like electrical insulation, LCD/FPC/PCB manufacturing, Energy like Solar cells panel production and module lamination, Packaging like heat sealing, release sheet for heat press machines, Textile like seamless fusing belts for fusing machine, release sheet in shoes industry, textile lamination and so on.
Specifications of Porous Teflon Fabrics YS9010P
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC | ANTI STATIC SERIES | PTFE |
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 1000, 1250 mm | 39.5, 49.3 inches |
| Thickness | 0.08 mm | 0.0031 inches |
| Coated weight | 155 g/m² | 4.57 oz/yd² |
| PTFE content | 68 % | 68 % |
| Surface resistance | 10^7 to 10^5 OHMS/m² | 10^7 to 10^5 OHMS/m² |
| Tensile strength | 102 N/cm Warp | 58.3 lbs/inches Warp |
| 98 N/cm Fill | 56 lbs/inches Fill | |
| Temperature resistance | -73 to +260 °C | -100 to +500 °F |
Click here to download the spec of YS9008BJ-ESONE
Click here to access Anti static Teflon Adhesive Tape
Contact us for more information and get samples！
