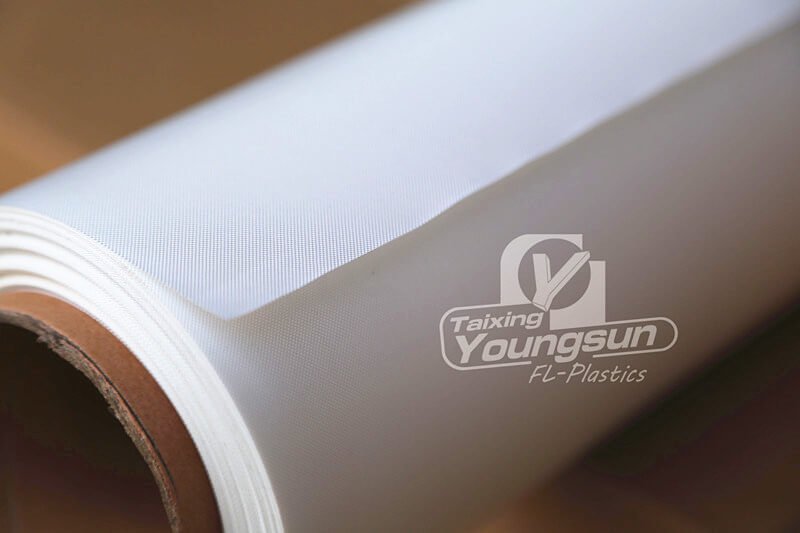

Porous Teflon Fabrics YS9010P

Porous Teflon Fabrics YS9010P

Porous Teflon Fabrics coated fiberglass with lower levels of PTFE(Teflon)(Polytetrafluoroethylene), which makes it has a high porosity and non stick property.
This Porous PTFE fabrics is used in different applications which need air through the fabric under pressure (air circulation for drying and curing processes), normal applications including casting sheets for uncured elastomers, vacuum bag bleeder cloth for composite molding in the manufacturing of composite aircraft components, release sheet in flooring industry or grind wheels and so on.
Different from PTFE fabric premium series, Porous Teflon Fabrics is more flexible, much stronger and can be wrapped around curved shapes.

Description

Porous Teflon Fabrics YS9010P, high porosity and enough PTFE content

  • Porous Teflon Fabrics coated fiberglass with lower levels of PTFE(Teflon)(Polytetrafluoroethylene), which makes it has a high porosity and non stick property.
  • This Porous PTFE fabrics is used in different applications which need air through the fabric under pressure (air circulation for drying and curing processes), normal applications including casting sheets for uncured elastomers, vacuum bag bleeder cloth for composite molding in the manufacturing of composite aircraft components, release sheet in flooring industry or grind wheels and so on.
  • Different from PTFE fabric premium series, Porous Teflon Fabrics is more flexible, much stronger and can be wrapped around curved shapes.

Advantage of Porous Teflon Fabrics YS9010P

Application Porous Teflon Fabrics YS9010P

Aerospace, Communications, Milltary

Polymer Processing

Insulation and protection

PTFE fabric for composite aircraft components

Drying painted or lacquered products

Release sheet for heat sealing machines

Specifications of Porous Teflon Fabrics YS9010P

ProductProduct CategoryCoating
PTFE GLASS FABRICPOROUS SERIESPTFE



PropertiesMetricImperial
Standard width
Please ask for other widths
1000 mm39.5 inches
Thickness0.10 mm0.004 inches
Coated weight140 g/m²4.13 oz/yd²
PTFE content24 %24 %
Porosity20-60 cfm20-60 cfm
Tensile strength240 N/cm Warp137 lbs/inches Warp
200 N/cm Fill200 N/cm Fill
Temperature resistance-73 to +260 °C-100 to +500 °F



Click here to download technical data sheet of YS9010P-ESONE
