Description

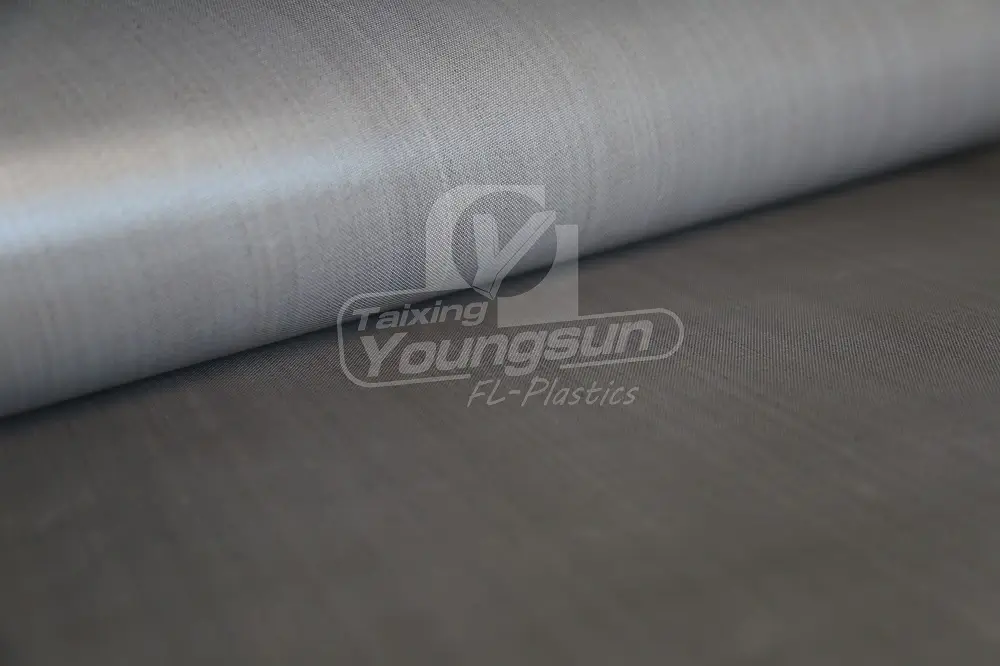

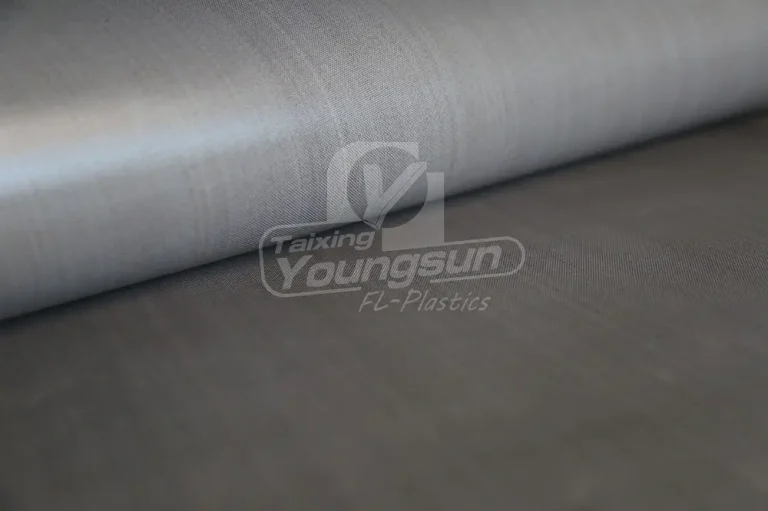

Porous Teflon Sheet YS9023P, coating low level of PTFE
- Porous Teflon Sheet balance the porosity and release property, it has a higher porosity than normal PTFE coated fabrics, and this Teflon coated fabric combines fiberglass with low content of PTFE coating.
- This Porous Teflon fabric is used in applications which need airflow pass throw the fabric under pressure (air circulation for drying and curing processes), normal applications including casting sheets for uncured elastomers, vacuum bag bleeder cloth for composite molding, luxury Vinyl tile manufacturing, release sheet for grinding wheels and so on.
- Unlike PTFE premium series, it is more flexible, much stronger and can be wrapped around curved shapes.
Advantage of Porous Teflon Sheet
Application Porous Teflon Sheet YS9023P
Aerospace, Communications, Milltary
Composite mold release in vacuum bag, or use as release sheets for fabricating glass-resin structures.
Polymer Processing
Manufacture of silicone rubber sheets, Curing rubber and plastic foams and sponge.
Insulation and protection
PTFE fabric for composite aircraft components
Drying painted or lacquered products
Release sheet for heat sealing machines
Release sheet or belts for Luxury Vinyl tile, PVC flooring
Specifications YS9023P
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC | POROUS SERIES | PTFE |
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 1000, 1500, 2600 mm | 39.5, 59.1, 102.4 inches |
| Thickness | 0.23 mm | 0.0091 inches |
| Coated weight | 278 g/m² | 8.2 oz/yd² |
| PTFE content | 26 % | 26 % |
| Porosity | 30-60 cfm | 30-60 cfm |
| Tensile strength | 460 N/cm Warp | 263 lbs/inches Warp |
| 430 N/cm Fill | 246 lbs/inches Fill | |
| Temperature resistance | -73 to +260 °C | -100 to +500 °F |
Click here to download technical data sheet of YS9023P-ESONE (Porous Teflon Sheet)
