Description

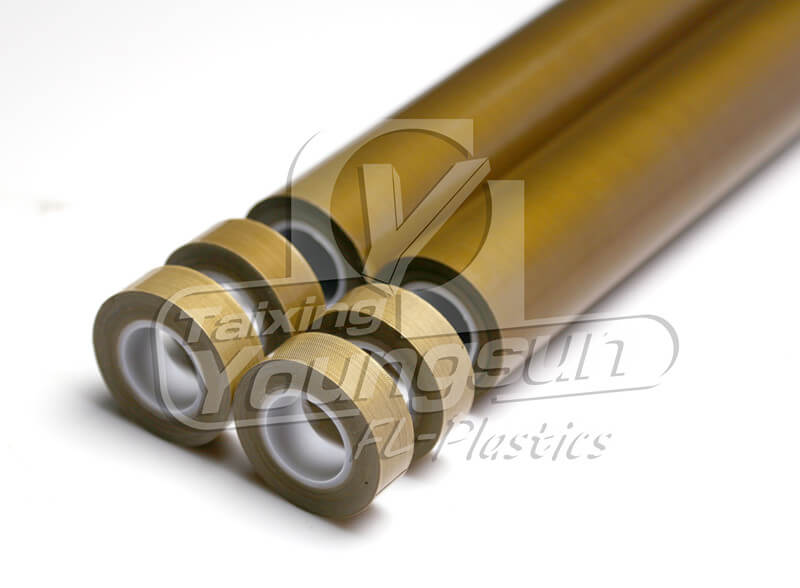

PTFE Adhesive Sheet YS7018AJ, high PTFE content Premium Series
PTFE Adhesive Sheet Premium series, is using high PTFE content Teflon coated fabric as basic material, and chemical treated on one side for coating Silicone pressure sensitive adhesive on the back. This PTFE self adhesive fabric has better property in release, dielectric strength and lifetime.
Self Adhesive PTFE coated fabric has a yellow PVC liner on the back, which can protect the adhesive surface and to ease distinction and use.
Any width or length can be cut according to the applications, such as heat sealer machines, covering elements, impulse wires, L-Bar sealers, Wire wrap insulation and harness protection.
Properties of High temp Teflon tape YS7008AJ
Outstanding temperature resistance (continuous working from -70°C to +260°C)
Perfect solution for tough environment transportation
Has strong dielectric strength
Continuous working below 260 degrees
High chemical resistant
Superior non-stick surface, easy to release and clean
Offering long lasting easy release property
Resistance to UV
Resistance to HF and RF
Application of PTFE Adhesive Sheet YS7018AJ
★ Custom color of Teflon coated tape
PTFE coated tape can be made into many colors, like Dark brown, light brown, green, red, blue and so on.
This will not affect the quality of PTFE coated fabric. Color is used to distinguish PTFE fabric.
High temperature Teflon tape
★ Custom adhesive
The backed adhesive can be Silicone PSA or Acrylic adhesive, according to the application request or purchase budget.
Self Adhesive Teflon Tape with Acrylic Adhesive
★ Custom tensile strength
Tensile strength of PTFE Adhesive Sheet can be enhanced for high request applications like wind turbine blades or manufacturing of composite aircraft components
PTFE Mold release tape
★ Made into PTFE zone tapes
Esone can offer PTFE Zone Tapes, which has custom sized adhesive strip on both edges, and the center is non adhesive as Free Zone.
PTFE Zone Tapes are available for applications where it is not desirable for adhesive to come in contact with a heating element.
Offering Skived PTFE Film adhesive tapes
Esone also produce Teflon skived film with Silicone adhesive, which is pure PTFE film has excellent elongation.
PTFE Skived Adhesive Tape
Specifications of PTFE Adhesive Sheet YS7018AJ
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC SELF ADHESIVE | PREMIUM SERIE | SILICONE PSA |
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 1000 mm | 39.5 inches |
| Backing Thickness PTFE glass | 0.18 mm | 0.0071 inches |
| Total Thickness PTFE glass and Silicone PSA | 0.23 mm | 0.0091 inches |
| Baking weight PTFE glass | 370 g/m² | 10.9 oz/yd² |
| Tensile Strength PTFE glass | 320 N/cm Warp | 183 lbs/inches Warp |
| 302 N/cm Fill | 172.5 lbs/inches Fill | |
| Adhesion | 5.6 N/cm | 51 oz/inches |
| Temperature resistance | -73 to +260 °C | -94 to +500 °F |
Contact us for more information and get samples！
