PTFE Mesh Conveyor Belt, long lasting screen printing belt
PTFE Mesh Conveyor Belt, long lasting screen printing belt
PTFE Mesh Conveyor Belt is widely used in applications of high heat, from screen print dryers used in textile industry to extruded rubber products used in the automobile industry. Belts are designed for top performance and durability in high-heat environments.
Teflon Belt YS6012 is 4×4 mm double weft mesh fabric, this mesh belt can be anti-static by adding special formula. And due to the construction, this belt has good mechanical strength and is widely used in the market.
Properties of PTFE mesh conveyor belt
Food grade, can touch food directly
Cost effective
Operating temperature range from -70 to 260 degrees
Superior non-stick surface, easy to clean and release
Exceptional strength and dimensional stability.
High chemical resistant
Easy to install and repair

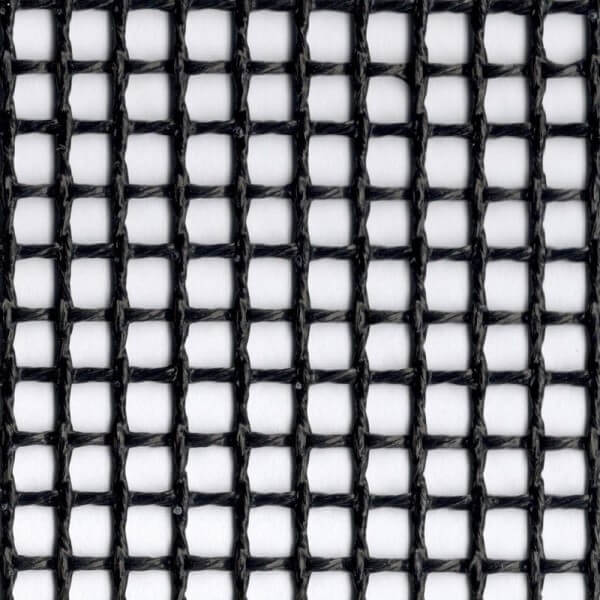

Techinical Data of mesh PTFE fabric YS6003
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC | OPEN MESH SERIE | PTFE |
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 1000, 1500, 2050, 2500,2750, 3200, 3350,3600, 4000 mm | 39.5, 59, 81, 98.4,110, 126, 132,142, 158 inches |
| Mesh Size | 4 x 4 mm | 0.1574 x 0.1574 inches |
| Weight | 460 g/m² | 13.57 oz/yd² |
| Weft | Single weft | Single weft |
| Tensile Strength | 320 N/cm Warp | 183 lbs/inches Warp |
| 434 N/cm Fill | 248 lbs/inches Fill | |
| Color | Black | Black |
| Temperature Resistance | -73 to +260 °C | -100 to +500 °F |
- For samples of PTFE Mesh Conveyor Belt, please feel free to contact us.
- Other specification is also available, you can contact us for more information.
Note:
Weight Tolerance mm= ±%5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be constured in any manner as warranties expressed.
Different splices & joint & edge reinforcement
- ESONE is not only offering the full range of PTFE mesh fabric, but also providing any kinds of splices & joints & edge reinforcement.
- Teflon belt manufactured by ESONE will be your reliable long lasting and high performance partner!
| PTFE Mesh Belt | |||
|---|---|---|---|
| Belt Material | PTFE glass fabric | PTFE Kevlar fabric | |
| Belt Joint | Bullnose | Alligator | Plastic |
| Belt Edge | PTFE glass edge | PTFE film edge | PTFE Kevlar edge |
| Belt Guide | PTFE guide | Kevlar guide | Silicone guide |
| Belt Pin | Stainless Steel Pin | PTFE Pin | Alligator Pin |
Applications of PTFE coated mesh YS6004
PTFE Grill Mesh
Due to the non stick property of PTFE coated mesh, YS6004 is widely used as grill mesh for home use or commercial use. By using ESONE YS6004, food will be crispy as heat air can pass through Teflon mesh.
And thanks to the non stick surface of Teflon net, this grill mesh is very easy to clean and dishwasher safe.
BBQ Grill Mesh
Laminated glass manufacturing
ESONE high quality PTFE open mesh fabric is used as the release liner for laminated glass manufacturing.
The reason why use Teflon mesh is as follows.
1) PTFE open mesh fabric is non stick
2) Teflon net is porosity, the production can be vacuumized easily.
3) Mesh PTFE fabric has high mechanical strength, has long lifetime.
Laminated glass vacuum bag
Drying belt with high mechanical strength
Drying belt is the most common applications for PTFE mesh fabric.
Teflon open mesh belt can be easily found in food packaging, seafood processing, screen printing, pets food manufacturing, non woven manufacturing and many other applications
And Teflon open mesh belt which using strong fiberglass yarn has stronger mechanical strength and longer lasting property.
ESONE Teflon mesh belt for drying
Contact us for more information and get samples！
