Description

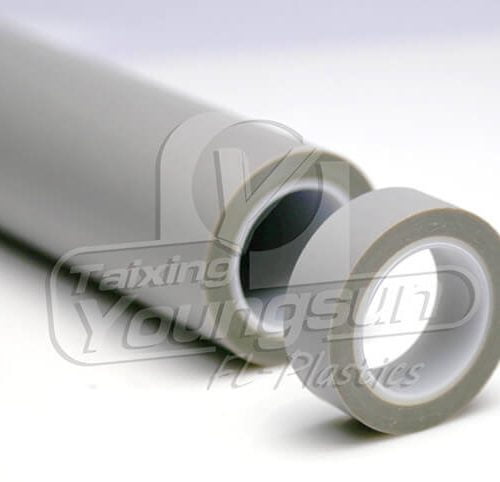

Skived PTFE Tape, manufactured from high quality virgin PTFE resins
Skived PTFE Tape is manufactured from the highest quality virgin PTFE resins, and is designed to meet the requirement of most electrical, mechanical and industrial applications.
Once the PTFE Film been skived from PTFE resins, it will be chemically treated or etched, which will remove the fluorine surface by creating a new sodium surface. Then the heat resistant adhesive will be allowed to bond PTFE film, resulting in Teflon Skived Film with Silicone Adhesive.
Property of ESONE Skived PTFE Tape
Once the Teflon film has been skived from the PTFE(Teflon) block, it will be chemically treated or etched, which will remove the fluorine surface by creating a new sodium surface. Then the heat resistant adhesive will be allowed to bond PTFE film, resulting in Teflon Skived Film with Silicone Adhesive.
The normal adhesive including Silicone pressure sensitive adhesive and Acrylic adhesive, which can both resist high temperature.
Silicone PSA can resist heat up to +260 degrees, has high and stable adhesion, using PVC liner for protection and release, but the initial tacky is small.
However, Acrylic adhesive can resist heat up to +170 degrees, using PE liner for protection and release, the adhesion is smaller than Silicone PSA, but has much high initial tacky.
Property of ESONE Skived PTFE Tape

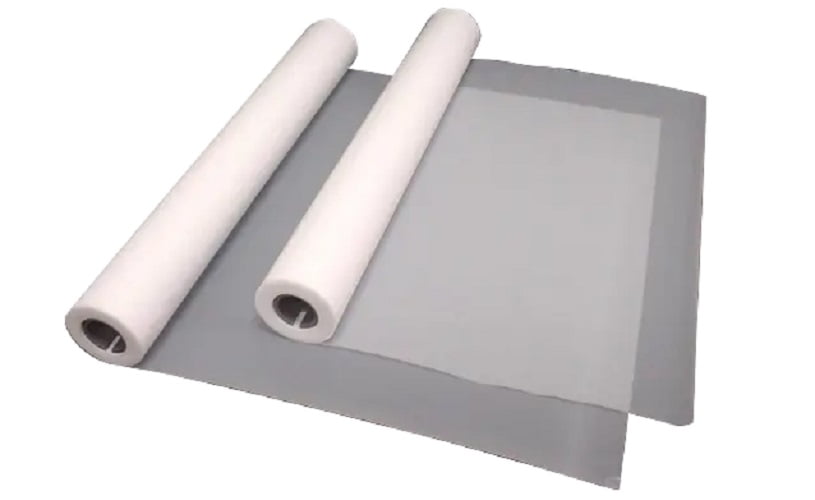

Virgin PTFE Film

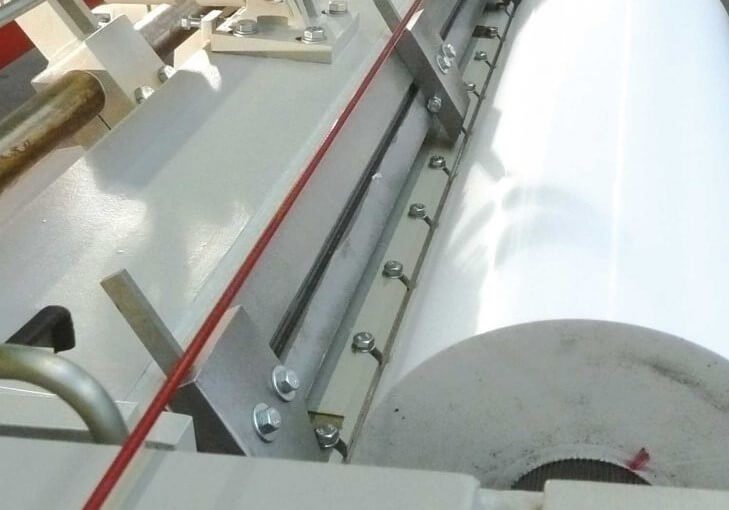

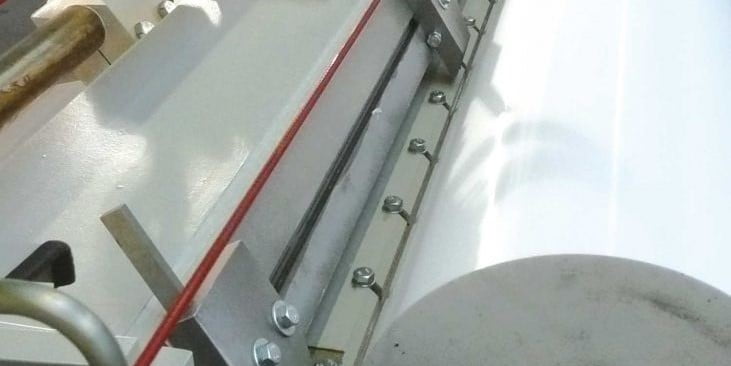

ESONE PTFE Film is skived into even thin film from a cylindrical virgin PTFE block. During the skiving, the block was fixed and rotate with a high speed, and the sharp blade will shave it into even thin film on a continuous basis.
High dielectric constant
PTFE has very high dielectric constant, and PTFE Film tape is pure PTFE film, so this film is widely used as release film in LCD ACF bonding process.
High elongation
he elongation is ranging from 100% to 600%, according to different thickness.
Very low force of friction
Skived PTFE tape has very low force of friction, which is also used to reduce friction between moving surfaces in non-critical applications.
High chemical resistant
Superior non-stick surface, easy to clean and release
Excellent mechanical strength
Outstanding heat resistantance ability
Application of Teflon Skived Film
- Masking of critical part of silicone contamination
- Aerospace industry, like mold release tape for composite material, sealing tape for vacuum bagging system.
- Electronics industry for semiconductor, PCB manufacturing, cable wrapping.
- Chemical industry, such as isolation of chemicals.
- Noise reduce.
- Reduce friction between moving surfaces.
- Release film for lamination, like ACF bonding for LCD
Technical Data Sheet of Skived PTFE Tape YS7913
| Product | Product Category | Coating |
|---|---|---|
| PTFE SKIVED FILM ADHESIVE TAPE | PTFE FILM ADHESIVE SERIES | SILICONE PSA |
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 5 – 500 mm | 0.2 – 19.7 inches |
| Backing Thickness PTFE Film | 0.09 mm | 0.0035 inches |
| Total Thickness PTFE Film and Silicone PSA | 0.13 mm | 0.0051 inches |
| Adhesion | 3.2 N/cm | 29 oz/inches |
| Color | White or Gray | White or Gray |
| Temperature resistance | -73 to +260 °C | -100 to +500 °F |
Contact us for more information and get samples！
