Description

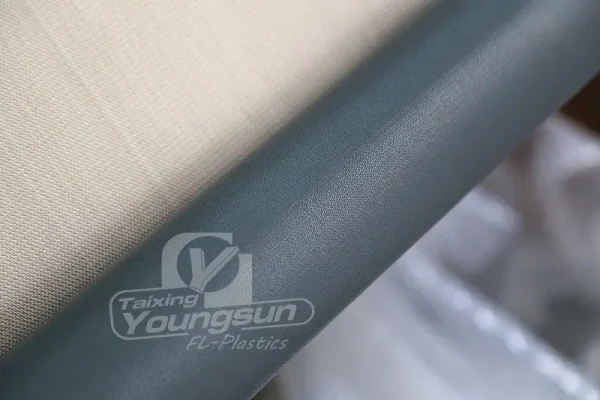

Teflon coated glass fabric 34oz, long lasting PTFE fabric for insulation jacket
- Teflon coated glass fabric 34oz, is using heavy weight fiberglass than 16.5oz or 18oz PTFE fabric. This Teflon fabric is designed for long lasting insulation jacket.
- Compared to 16.5oz Teflon fabric, 34oz Teflon coated fabric has stronger tensile strength, is much more easier to be sewn, and last longer with more non stick coating.
- Applications of Fluorin coated series include wrapping insulation for pumps, filters, exchange, pipeline, valves, freeze protection and so on, it’s wraped outside the insulation blanket, as this fabric is anti-aging, anti-chemical and anti-environment.
- Different color is used for different application, such as steam pipeline, oil pipeline or gas pipeline.
Components
- 34oz PTFE Glass Coated Fabric is using fiberglass (E-glass) as basic material, and coated with high quality PTFE(Teflon).
- This Teflon coated glass fabric for insulation jacket is around 26% PTFE content.
Difference between Teflon fabric and Silicone fabric
The property of Teflon coated glass fabric is much more better than silicone fabric, not matter the lifetime, the non stick property or the chemical resistant.
- Teflon fabric can resist heat up to 600F, Silicone can resist heat below 500F
- Teflon fabric can be self cleaning, better for outside application
- Teflon fabric has higher chemical resistant
- Teflon fabric last longer than silicone fabric, has better property
- Teflon fabric has strong tensile strength and tear strength
Properties of Teflon coated glass fabric 34oz
Can resistant harsh environment
High chemical resistant
Long lasting
Heat resistant to 600F (315C)
High tensile strength
Easy to sew
Non stick, dust free and self cleaning
Specifications of Teflon coated glass fabric 34oz
| 34oz Teflon coated glass fabric YS9086HD | ||
|---|---|---|
| Properties | Metric | Imperial |
| Basic Fabric | Satin weaved fiberglass | Satin weaved fiberglass |
| Coating | One side | One side |
| Standard width Please ask for other widths | 1500 mm | 60 inches |
| Coated Weight | 1150 g/m² | 34 oz/yd² |
| Thickness | 0.86 mm | 0.034 inches |
| Tensile strength | Warp 4300 N/5cm | 562 lbs/inches |
| Fill 3500 N/5cm | 457.5 lbs/inches | |
| Mullen Burst | 455 N/cm² | 650 psi |
| Flame Resistant | Char Length 2.54 cm max | Char Length 1 inch max |
| Afterglow 1 second max | Afterglow 1 second max | |
| Flame Out 1 second max | Flame Out 1 second max | |
| Temperature resistance | -73 to +315 °C | -100 to 600 °F |
| UV Resistance | 1000 hours; no change in tensile | 1000 hours; no change in tensile |
| Color | Gray/White/Yellow/Black/Red | Gray/White/Yellow/Black/Red |
Click here to download the spec of 34oz Teflon coated glass fabric YS9086HD-ESONE
Applications
Removable Insulation Jacket
Teflon coated glass fabric 34oz
