Description
Teflon open mesh belt YS6001S is using stronger fiberglass yarn for weaving, the tensile strength and lifetime is better than standard mesh series. The main applications is screen printing, drying, packaging industry, textile industry, wood processing industry and so on, which is used as heat resistant and non stick conveyor belt to transport materials through ovens.

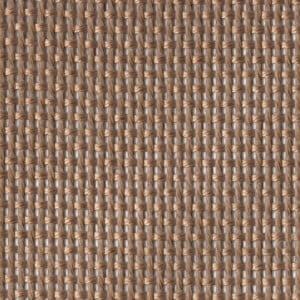

Teflon open mesh belt YS6001S
Teflon open mesh belt YS6001S is using stronger fiberglass yarn for weaving, the tensile strength and lifetime is better than standard mesh series. The main applications is screen printing, drying, packaging industry, textile industry, wood processing industry and so on, which is used as heat resistant and non stick conveyor belt to transport materials through ovens.
1×1 mm PTFE open mesh fabric is FDA & LFGB certificated, can be used in direct contact with food.
Specification of Teflon open mesh belt YS6001S
Extra strong mechanical strength
Can be used in direct contact with food.
Longer lifetime
Excellent belting material
PTFE mesh with stronger fiberglass YS6001S
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 1000, 1500, 2000, 3000 mm | 39.5, 59, 78.7, 118 inches |
| Mesh Size | 1 x 1 mm | 0.0393 x 0.0393 inches |
| Tensile Strength | 536 N/cm Warp | 306 lbs/inches Warp |
| 410 N/cm Fill | 234 lbs/inches Fill | |
| Color | Brown | Brown |
| Temperature Resistance | -73 to +260 °C | -100 to +500 °F |
Click here to download the spec of YS6001S-ESONE
Click here to access PTFE mesh series
PTFE mesh with standard fiberglass YS6001
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 1000, 1500, 2050, 2600,2800, 3200,3650, 4000 mm | 39.5, 59, 81, 102.5, 110, 126,144, 158 inches |
| Mesh Size | 1 x 1 mm | 0.0393 x 0.0393 inches |
| Tensile Strength | 446 N/cm Warp | 255 lbs/inches Warp |
| 330 N/cm Fill | 189 lbs/inches Fill | |
| Color | Brown | Brown |
| Temperature Resistance | -73 to +260 °C | -100 to +500 °F |
Click here to download the spec of YS6001-ESONE
Click here to access PTFE mesh YS6001
Applications of Teflon open mesh belt
Release sheet for laminated glass manufacturing
ESONE high quality PTFE open mesh fabric is used as the release liner for laminated glass manufacturing.
The reason why use Teflon mesh is as follows.
1) PTFE open mesh fabric is non stick
2) Teflon net is porosity, the production can be vacuumized easily.
3) Mesh PTFE fabric has high mechanical strength, has long lifetime.
Drying belt with high mechanical strength
Drying belt is the most common applications for PTFE mesh fabric.
Teflon open mesh belt can be easily found in food packaging, seafood processing, screen printing, pets food manufacturing, non woven manufacturing and many other applications
And Teflon open mesh belt which using strong fiberglass yarn has stronger mechanical strength and longer lasting property.
Teflon open mesh belt for non woven manufacturing
The heat resistant and non stick PTFE coated belt, is the critical feature of the thermal bonding process of non woven manufacturing.
During the drying process, the cotton with or without glue, the fiber with low melting point need to be dried and cured, then a PTFE mesh belt or PTFE heavy duty belt will be needed.
Conveyor belt for digital printing
Digital printing is a modern way to print pattern, different from traditional printing, digital printing minimize the printing cost and speed up the printing time.
PTFE mesh conveyor belt is used in the digital printing and drying, since PTFE mesh belt is Non stick, heat resistant, easy to install and cost-effective.
