Seamless Belt for Oshima & Hashima fusing machine
Seamless belt is using high tensile fiberglass or Kevlar as basic material, this belt is woven by special weaving equipment and coated with high quality Teflon.
As Fusing machine belt has no joint and the basic material is very strong, so the lifetime will be much longer than normal belt with joint.
There is no scratch, pin holes and scar on the surface, so the apparel will be laminated even and tight.
Teflon seamless fusing machine belt could be made into Anti-static surface, resulting in a much better fusing experience.
Properties of PTFE mesh conveyor belt
High temperature resistant
Resistance to HF and RF
Superior Anti-static surface
Smooth surface, no scar on it
Resistance to UV
Flex fatigue resistance, durable, long using life
Superior non-stick surface, easy to clean and release
High temperature resistant
High chemical resistant

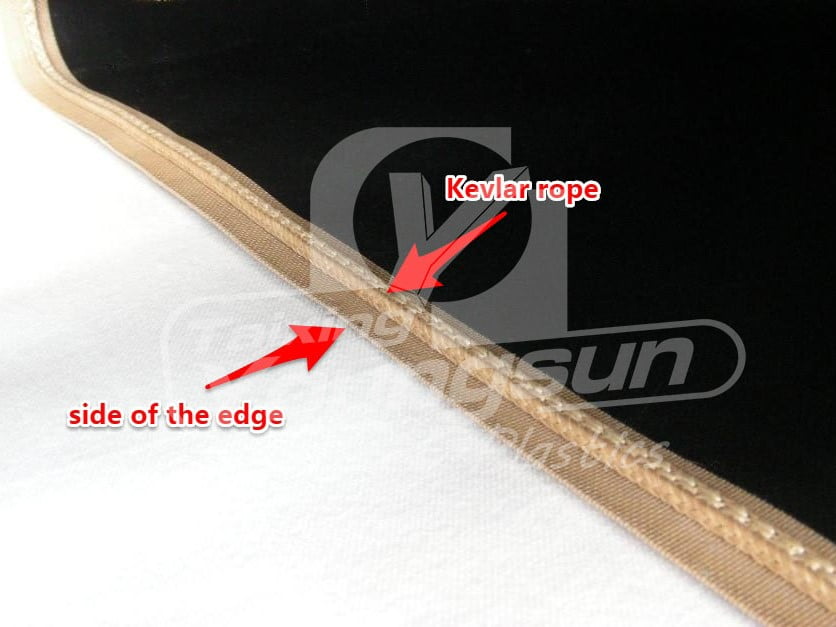

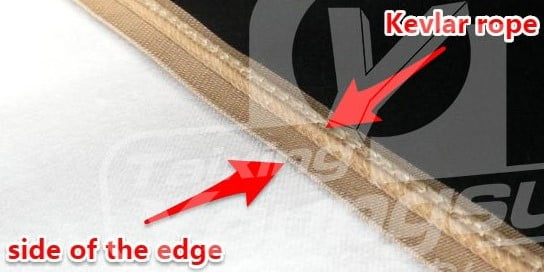

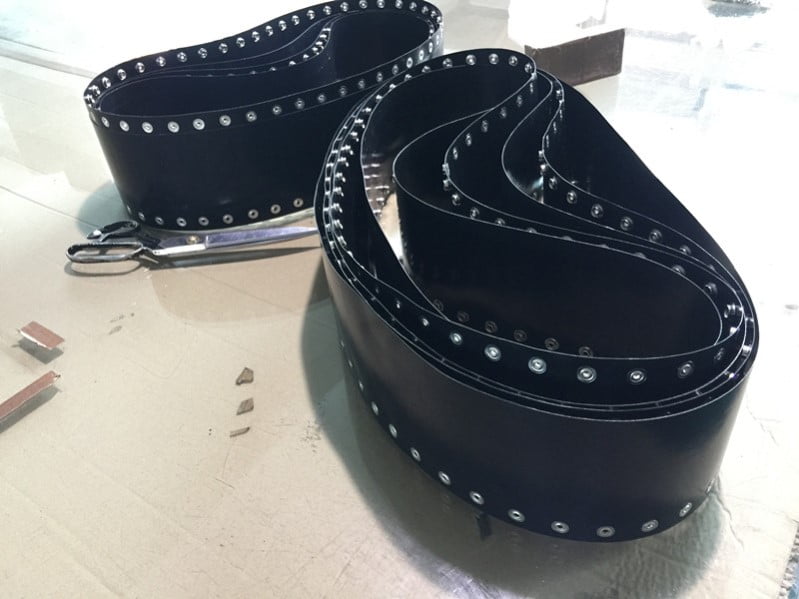

The edge could be reinforced by Kevlar rope, or PTFE rope, or PTFE thread, or metal rivet.
The edge could be reinforced by Kevlar rope, or PTFE rope, or PTFE thread, or metal rivet.
| Material | PTFE coated fiberglass fabric |
| Color | Black/brown/white |
| Thickness | 0.38mm-0.40mm / 0.50mm |
| Heat-resistance | -70c to +360c |
| Special requirement | Anti-static/ Teflon Kevlar edge reinforcement and guiding rope as required |
hashima fusing belt
Popular sizes of Oshima fusing machine belt
OP-450GS : 460*1530/1840mm
OP-450GSL: 460*1530/2440mm
OP-520GS : 520*1530/1840mm
OP-520GSL:520*1530/2440mm
Note: we can make the belt according to your required size.
Available length of seamless belt: 1360mm to 6700mm; Max width: 1600mm.
| Standard Thickness: 14.0~16.0 mil / 0.35~0.40mm | |||||||||
Width: 20～1600mm | |||||||||
Seamless Belt Girth: (mm) | |||||||||
1360 | 1380 | 1440 | 1470 | 1510 | 1520 | 1530 | 1540 | 1550 | 1560 |
1580 | 1600 | 1640 | 1660 | 1680 | 1730 | 1740 | 1780 | 1820 | 1830 |
1840 | 1850 | 1870 | 1880 | 1950 | 2000 | 2040 | 2100 | 2230 | 2240 |
2250 | 2310 | 2320 | 2420 | 2440 | 2450 | 2500 | 2600 | 2630 | 2750 |
2800 | 2820 | 2850 | 2880 | 2900 | 3050 | 3080 | 3090 | 3200 | 3450 |
3540 | 3590 | 3820 | 3850 | 3890 | 3900 | 3920 | 3930 | 4200 | 4270 |
5100 | 5270 | 5400 | 5640 | 5800 | 6000 | 6440 | 6700 | ||

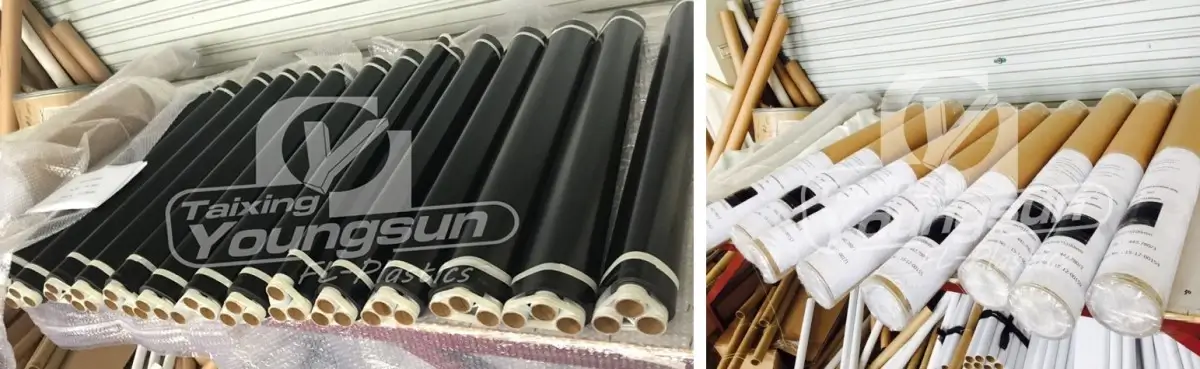

Packing of Teflon endless belt
- We packed the belts with several paper tubes inside, which greatly protect the belt from being damaged.
- Outside is protected with bubble film and then in carton box.
- Customer’s Logo could be marked on the surface.
Why choose our product
Our Seamless Belt is excellent compatible with many well-known fusing machines in the world, such as Hashima, Oshima, Meyer, Martin, Kannegiesser&etc.
Contact us for more information and get samples！
