Description

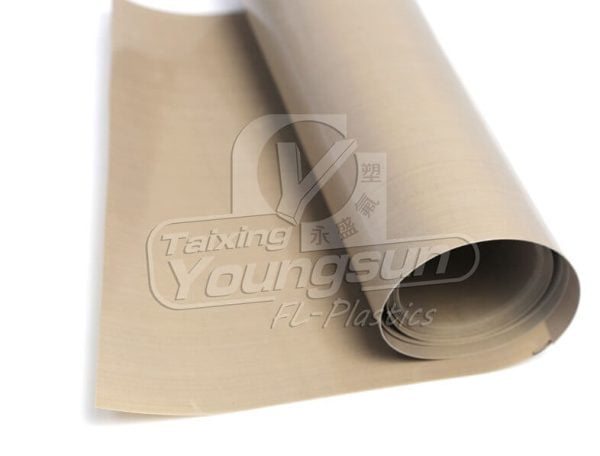

Teflon cloth YS9025AJ
- Our Teflon Cloth Premier Series YS9025AJ is crafted from 7628 basic fiberglass fabric coated with a high-quality PTFE formula.
- The resulting PTFE-coated fabric boasts a smooth, high-gloss surface, superior abrasion resistance, and excellent easy-release properties.
Properties of Teflon cloth YS9025AJ
Strong tensile strength and dimensional stability
High chemical resistant
High dielectric strength
Continuous working from -70°C to +260°C
UV resistant
Reusable and has long lifetime
Anti-environment
Easy to release, super Non stick，Low friction and very smooth
Non-toxic and compliant for food applications, FDA & LFGB certificated
Applications of 0.25mm Teflon Cloth Premier Series
- PTFE-coated cloth provides a 100% non-stick surface, making it ideal for applications requiring high-temperature resistance, chemical resistance, easy release, low friction, insulation, and more. Its uses range from release sheets for heat press machines, belting for the food industry, non-stick baking or oven liners, electrical insulation, and industrial processing.
- Our 0.25mm Teflon Cloth is FDA and LFGB certified, ensuring its safety for direct food contact. It is also commonly used as a releasing and laminating sheet for solar cell manufacturing, PVC or PE mold release, garment fusing, paper industry conveyor belts, tortilla belting, and more.
Technical Data of YS9025AJ Teflon Cloth
| Product | Product Category | Coating |
|---|---|---|
| PTFE GLASS FABRIC | PREMIUM SERIES | PTFE |
| Properties | Metric | Imperial |
|---|---|---|
| Standard width Please ask for other widths | 1000, 1250, 1500, 2000, 2600 mm | 39.5, 49.3, 59.1, 78.8, 102.4 inches |
| Thickness | 0.25 mm | 0.0098 inches |
| Coated weight | 530 g/m² | 15.63 oz/yd² |
| PTFE content | 62 % | 62 % |
| Tensile strength | 460 N/cm Warp | 263 lbs/inches Warp |
| 400 N/cm Warp | 229 lbs/inches Fill | |
| Temperature resistance | -73 to +260 °C | -100 to +500 °F |
Click here to download Spec of YS9025AJ-ESONE
For samples of Teflon Cloth, please feel free to contact us.
Other Width is also available, you can contact us for more information
0.25mm Teflon coated cloth can be made into Black Anti-static.
Note:
Weight Tolerance g/m² = ±5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be construed in any manner as warranties expressed.
Weight Tolerance g/m² = ±5
All technical data are based on average values. These values are based on test results we believes to be reliable, but they are not to be construed in any manner as warranties expressed.
